Accessories for MINI Version IMAGING-PAM
IMAG-MIN/GFP
for fluorescence excitation with blue LED light (470 nm); with emitter short-pass filter set (λ < 500 nm); for imaging a 24 x 32 mm object area; with object frame at fixed working distance.
Note: IMAG-MIN/GFP can only be used in combination with camera IMAG-K6 and accessories K6-MIN, K6-MIN/FS and K6-MIN/M
IMAG-MIN/R
Fluorescence excitation and actinic illumination with short-wavelength red light (620 nm); for imaging of max 24 x 32 mm sample areas; featuring sample frame at fixed working distance for sample positioning
IMAG-MIN/ST
Fine drive tripod adapter for mounting a MINI-Head onto a tripod head with UNC 1/4-20 screw threads, High perfomance rack-and-pinion drive (120 mm traverse path) for adjustment of working distance and angle. Works nicely together with the stand ST-101
ST-101
Upright laboratory stand with wooden base plate (300 x 395 mm) and vertical stainless steel support rod (Ø 15 mm, height 730 mm).
For mounting the MAXI Imaging measuring head (alternatively to the mounting stand with eye protection IMAG-MAX/GS) or the MINI measuring head via the tripod head adapter with fine drive IMAG-MIN/ST
ULM-500
Universal Light Meter & Data logger for light calibration of the internal light list of the 3D Version. A compatible PAR sensor like the LS-C is needed
Mini Quantum Sensor LS-C
The Mini Quantum PAR Sensor LS-C is a miniaturized, flat sensor that can be placed close to leaves in small spaces, for example within cuvettes. The LS-C measures photosynthetically active radiation (PAR). The sensor is well suited for light incident perpendicular to the surface between -30° and + 30°.
Spare Battery Set (000160101441)
The lithium-ion battery replacement and mounting kit comes with mounted plug and manual for the exchange.
Please note that lithium-ion batteries can only be shipped abroad under increased safety precautions.
In our Battery table you will find further sources of supply and information.
IMAG-MIN/BK

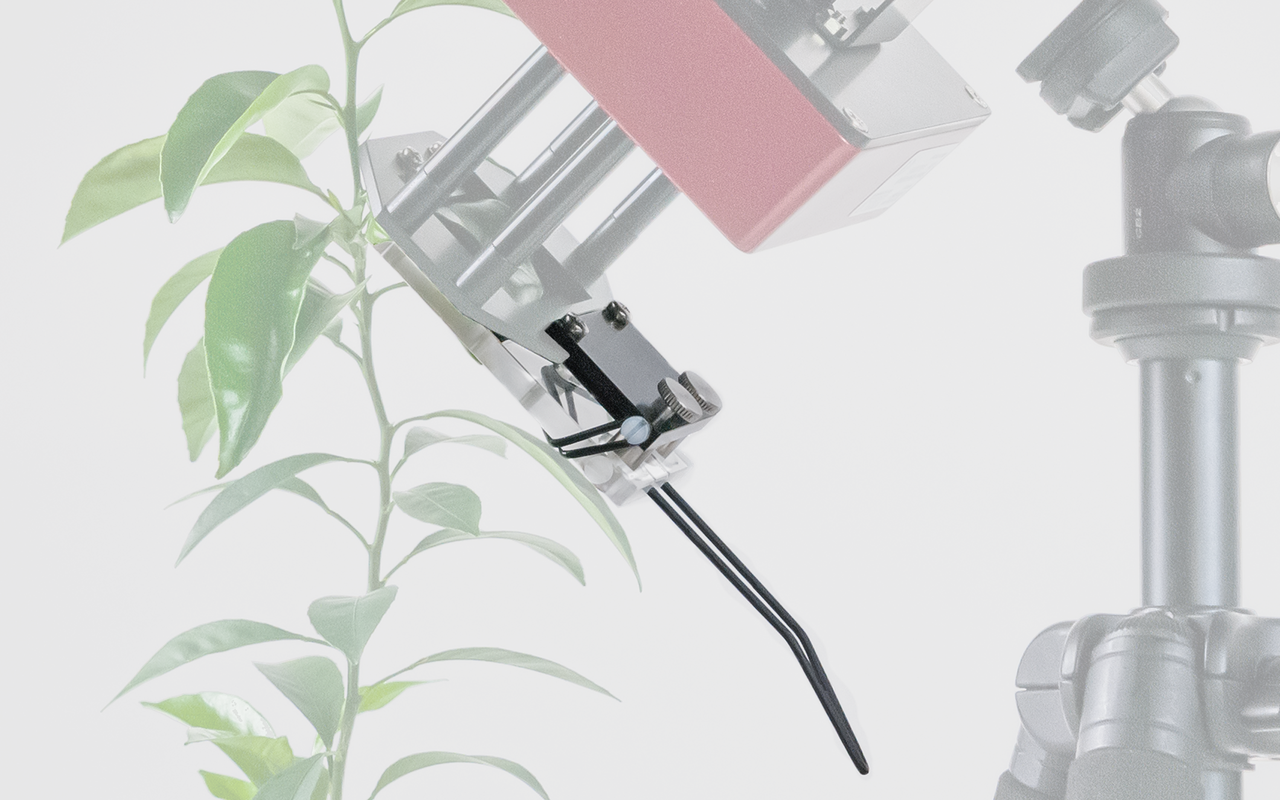

Turns the sample frame into a leaf clip.
Compatible with MINI-Head IMAG-MIN/B, /R or GFP.
Set includes the clip and a handle (not shown) so that the MINI-head can be used handheld or mounted on a tripod
IMAG-CM/MOD
Modification to update an existing multi-control unit IMAG-CM to the current electronic status and GigE‑communication. This ensures full compatibility between Win10 operating systems (64 bit) and the latest software (adaptation of electronic components, firmware, and modification of the housing by inactivating the “CAMERA” socket and omitting the USB port; replacement of the internal battery).
Important: after the modification, the central unit is no longer compatible with the old IEEE1394 (FireWire) cameras (part numbers smaller than IMAG-K6). For owners of an IMAG-C multi-control unit (standard head) there is no conversion possibility. In addition, the multi-control unit from MICRO-HEADS can be converted, but this can then only be connected to currently available measuring heads.
For the conversion, the device must be sent to Walz, Germany. Please be sure to contact Heinz Walz GmbH beforehand to clarify any additional modifications to the measuring heads that may be necessary.
IMAG-CG/MOD
Conversion for updating an already existing multi-control unit IMAG-CG to the current electronic level and GigE communication. This ensures full compatibility between Win10 operating systems (64 bit) and the current software (adaptation of electronic components, firmware and replacement of the internal battery).
After the update, ImagingWin software versions greater than version number 2.5x can be used. This fixes errors in communication and extends the possibilities of remote control.
For the conversion, the device must be sent to Walz, Germany. Please be sure to contact Heinz Walz GmbH beforehand to clarify any additional modifications to the measuring heads that may be necessary.
IMAG-K6
Camera with 2/3" CCD chip (1392 x 1040 pixel primary resolution), integrated data digitization and data transmission via GigE-Vision interface, increased sensitivity due to NIR enhanced CCD and 4-pixel binning for 640 x 480 pixel image display
IMAG-K7
IMAG‑K7 features a 1/2" CCD chip with 640 x 480 pixel resolution. The data are digitized within the camera and transferred via Ethernet interface (GigE-Vision®) to the PC. Compatible to Multi Control Unit IMAG-CG and lens set K7-MIN or K6-MIN (for higher magnification).
K7-MIN
F1.4/16 mm prime lens (Ricoh), as bundle together with spacer ring and appropriate PSII filter set
K6-MIN
F1.4/25 mm prime lens (Ricoh), as bundle together with spacer ring and appropriate PSII filter set
IMAG-MIN/GFS
The coupling plate provides a stable connection between a MINI Imaging probe head and the standard 3010-S gas exchange probe head by means of a click mechanism.
