Accessories for MICROSCOPY Version IMAGING-PAM
IMAG-RGB
allowing computer-assisted deconvolution of major algae groups or the flexible work with single light colors
Fluorescence excitation and actinic illumination uses red (620 nm), green (520 nm), blue (460 nm) or white light (mixed 620, 520 and 460 nm).
The IMAG-RGB head features a fluid light guide (100 cm length, 3 mm active dia.), connecting to collimator optics at excitation port of epifluorescence microscope; with cable to be connected to RGB output socket at IMAG-CG or IMAG-CM Multi Control Unit; separate drivers for RGB LEDs; extended ImagingWin software for computer controlled switching between red, green, blue, white excitation and deconvolution of fluorescence images into different pigment types of algae (green algae, diatoms/brown algae, blue green algae and red algae)
ULM-500
Universal Light Meter & Data logger for light calibration of the internal light list of the 3D Version. A compatible PAR sensor like the LS-C is needed
Mini Quantum Sensor LS-C
The Mini Quantum PAR Sensor LS-C is a miniaturized, flat sensor that can be placed close to leaves in small spaces, for example within cuvettes. The LS-C measures photosynthetically active radiation (PAR). The sensor is well suited for light incident perpendicular to the surface between -30° and + 30°.
MC-MQS/OVV
Microscopy irradiation sensor with 0.2 mm diffusor pinhole. Spectral calibration possible with reference sensors like LS-C.
A coupling possibility with LS-C as PAR reference sensor is foreseen. Connector: BNC

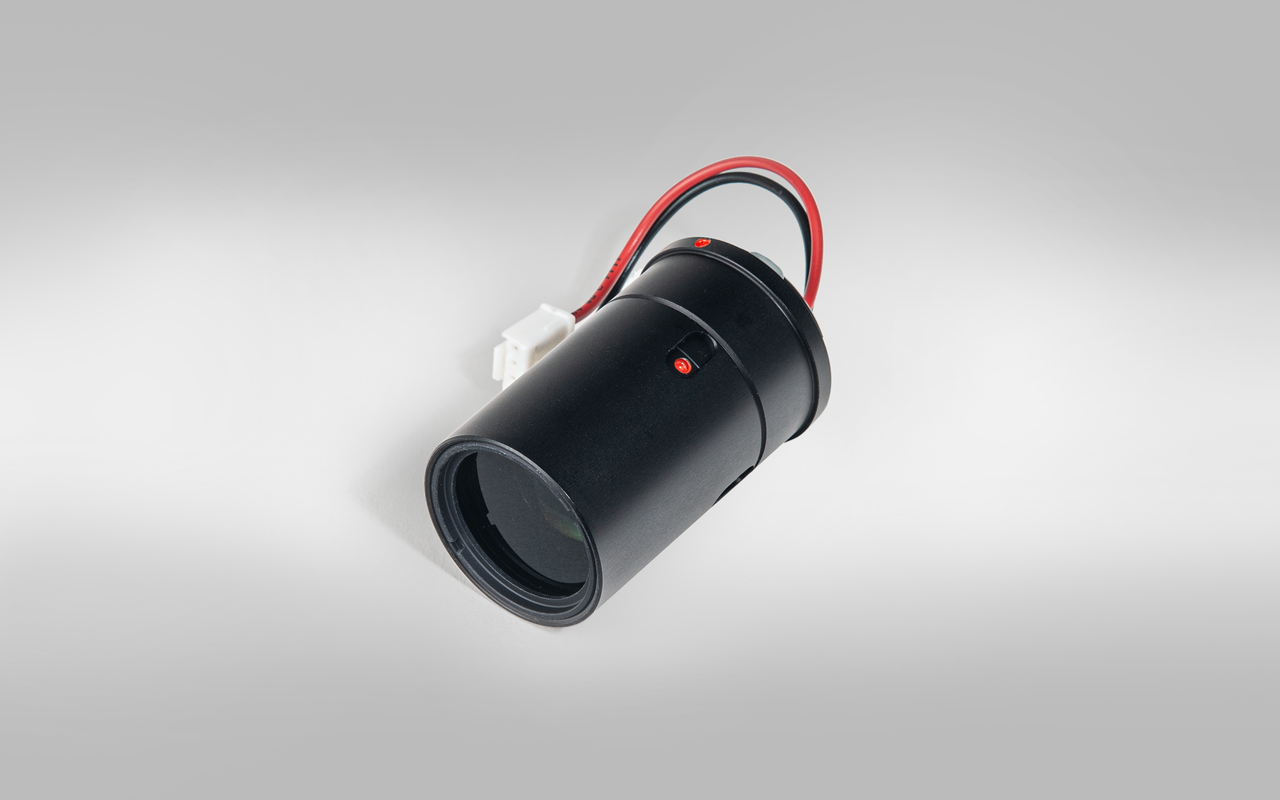

IMAG-L625M5 - Microscope LED Lamp Module
Suitable for excitation of PSII chlorophyll fluorescence of most algae groups including Cyanobacteria, together with IMAGING-PAM MICROSCOPY version only with IMAG-AXIOSCOPE-5
Emission peak wavelength 625 nm.
The set contains a selection of ND filters that can be used to adjust the light source to higher than standard magnifications.
An optimized interference filter is already mounted.
IMAG-L470M5 - Microscope LED Lamp Module
Suitable for excitation of PSII chlorophyll fluorescence of most algae groups including cyanobacteria, together with IMAGING-PAM MICROSCOPY version only with IMAG-AXIOSCOPE-5
Emission peak wavelength 470 nm.
The set contains a selection of ND filters that can be used to adjust the light source to higher than standard magnifications.
An optimized interference filter is already mounted.
IMAG-CM/MOD
Modification to update an existing multi-control unit IMAG-CM to the current electronic status and GigE‑communication. This ensures full compatibility between Win10 operating systems (64 bit) and the latest software (adaptation of electronic components, firmware, and modification of the housing by inactivating the “CAMERA” socket and omitting the USB port; replacement of the internal battery).
Important: after the modification, the central unit is no longer compatible with the old IEEE1394 (FireWire) cameras (part numbers smaller than IMAG-K6). For owners of an IMAG-C multi-control unit (standard head) there is no conversion possibility. In addition, the multi-control unit from MICRO-HEADS can be converted, but this can then only be connected to currently available measuring heads.
For the conversion, the device must be sent to Walz, Germany. Please be sure to contact Heinz Walz GmbH beforehand to clarify any additional modifications to the measuring heads that may be necessary.
IMAG-CG/MOD
Conversion for updating an already existing multi-control unit IMAG-CG to the current electronic level and GigE communication. This ensures full compatibility between Win10 operating systems (64 bit) and the current software (adaptation of electronic components, firmware and replacement of the internal battery).
After the update, ImagingWin software versions greater than version number 2.5x can be used. This fixes errors in communication and extends the possibilities of remote control.
For the conversion, the device must be sent to Walz, Germany. Please be sure to contact Heinz Walz GmbH beforehand to clarify any additional modifications to the measuring heads that may be necessary.
Spare Battery Set (000160101441)
The lithium-ion battery replacement and mounting kit comes with mounted plug and manual for the exchange.
Please note that lithium-ion batteries can only be shipped abroad under increased safety precautions.
In our Battery table you will find further sources of supply and information.
