MULTI-COLOR-PAM-II

Version:

Product
New

ST-Kinetics and Multi-Wavelength Chlorophyll Fluorometer

Suspension and leaf configurations

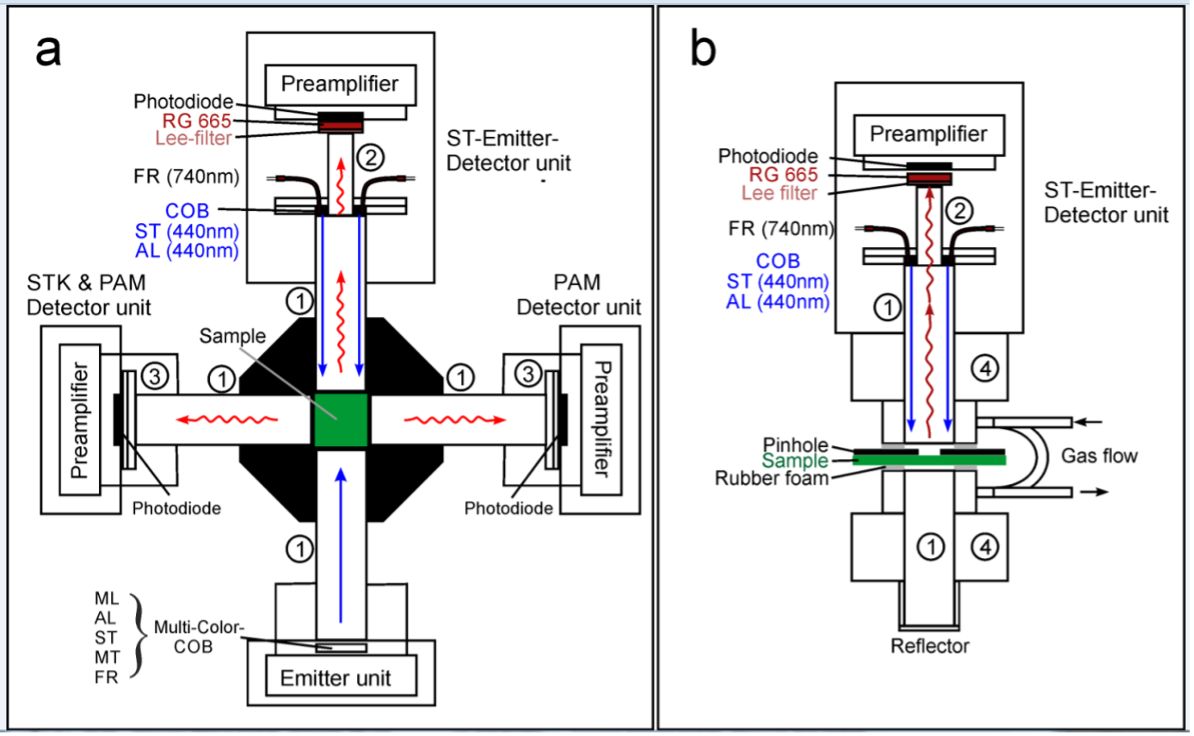

Scheme of a complete configuration for suspension measurements (a) and stand-alone application of the STK flashlamp unit for leaf measurements (b) (see Klughammer, Schlosser and Schreiber (Photosynth Res 2024: https://doi.org/10.1007/s11120-024-01101-w) for a full description).
Scheme of a complete configuration for suspension measurements (a) and stand-alone application of the STK flashlamp unit for leaf measurements (b) (see Klughammer, Schlosser and Schreiber (Photosynth Res 2024: https://doi.org/10.1007/s11120-024-01101-w) for a full description).

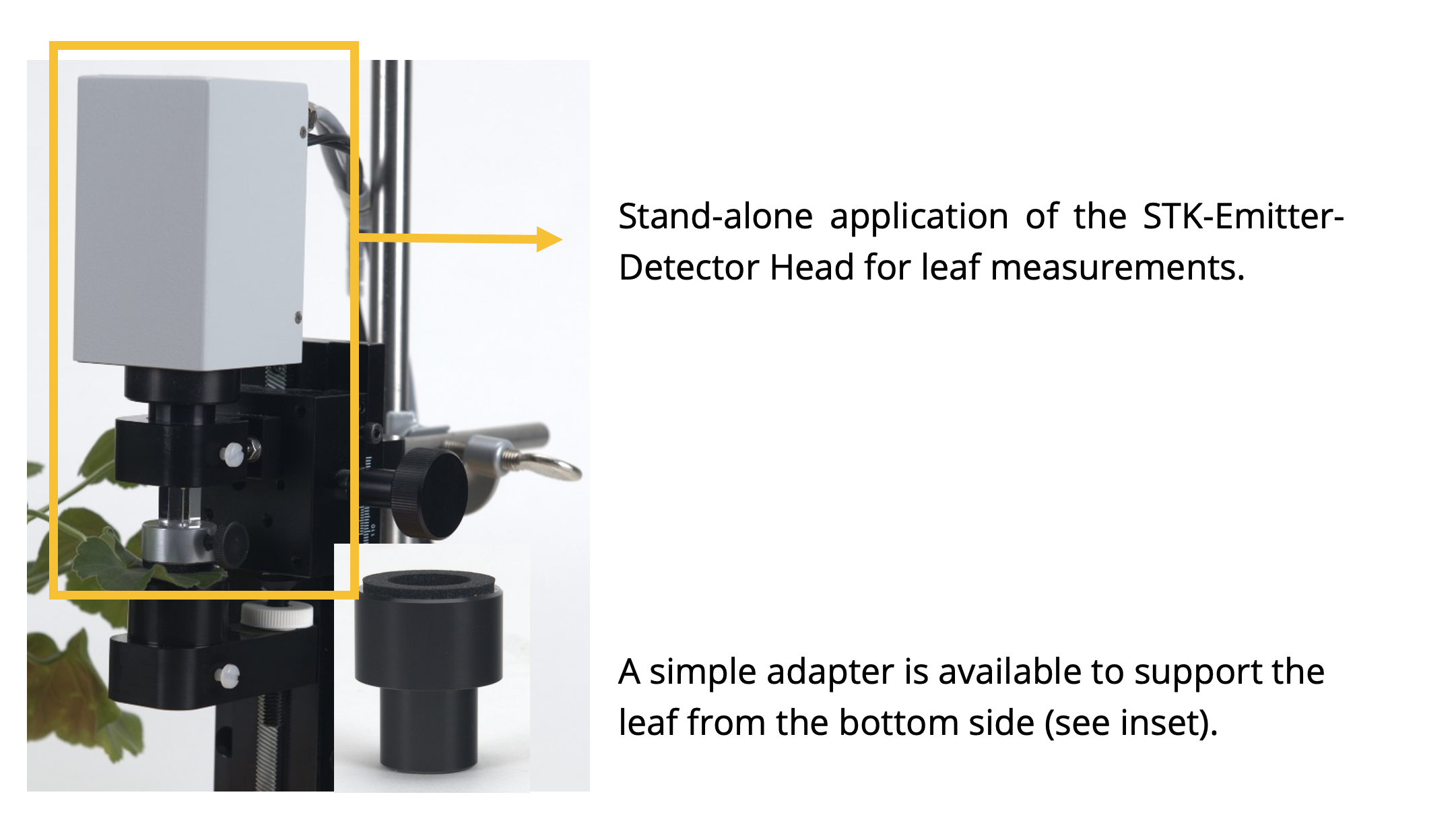

In the schematic version of the stand-alone application (see above), the leaf is placed in a gas flow chamber.

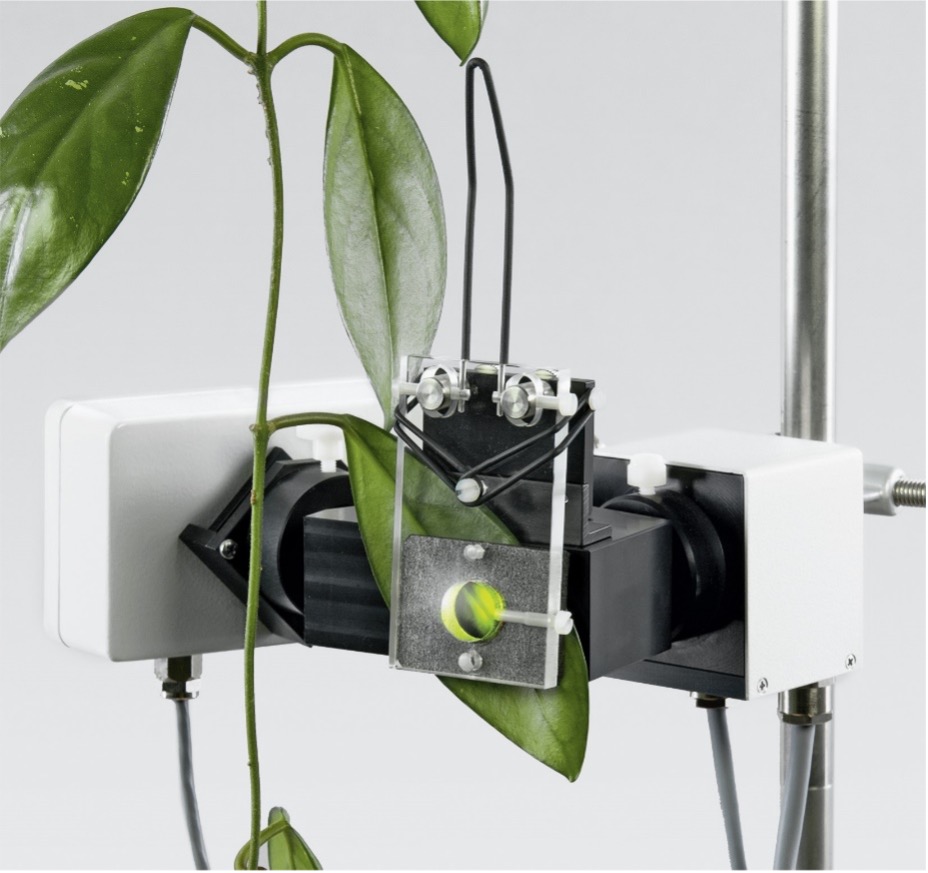

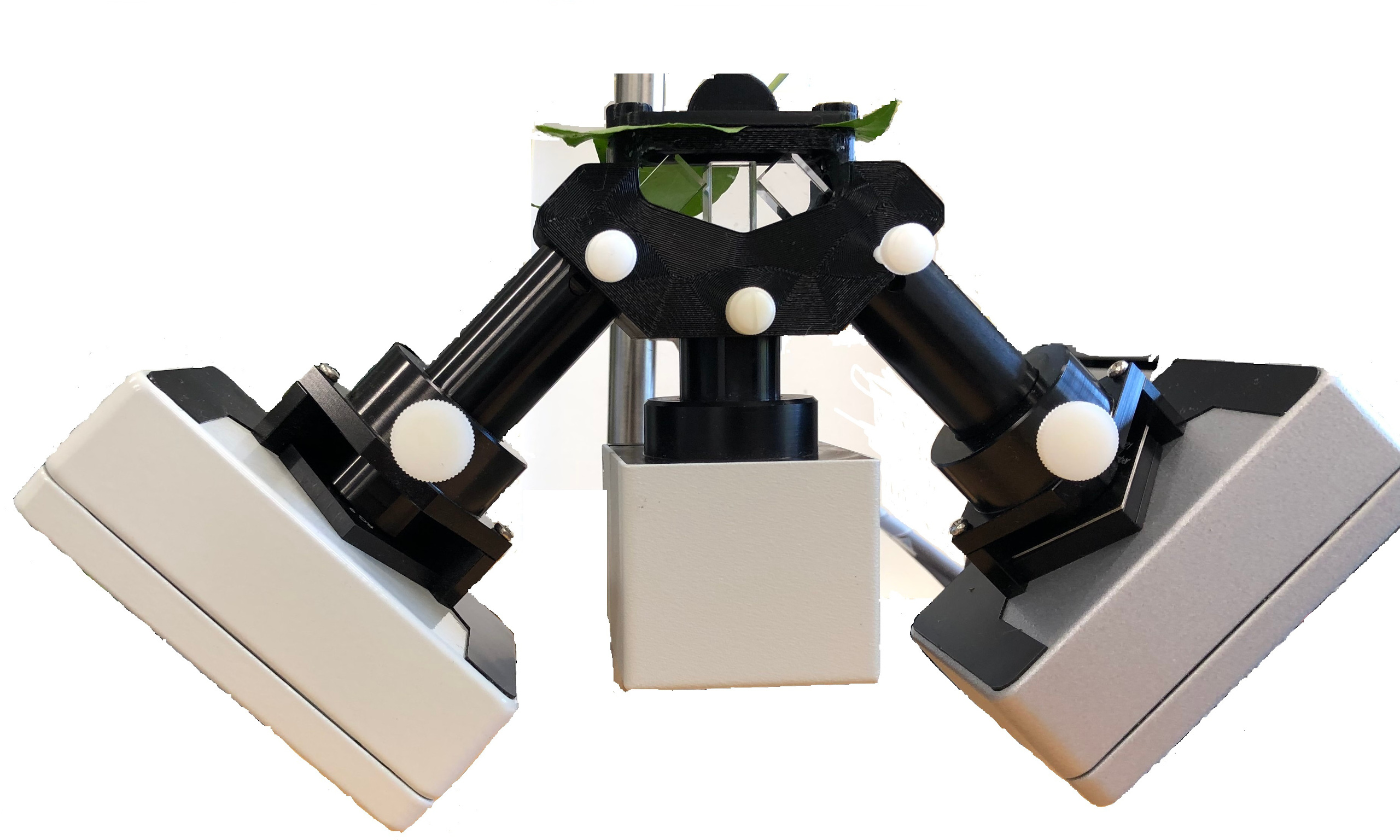

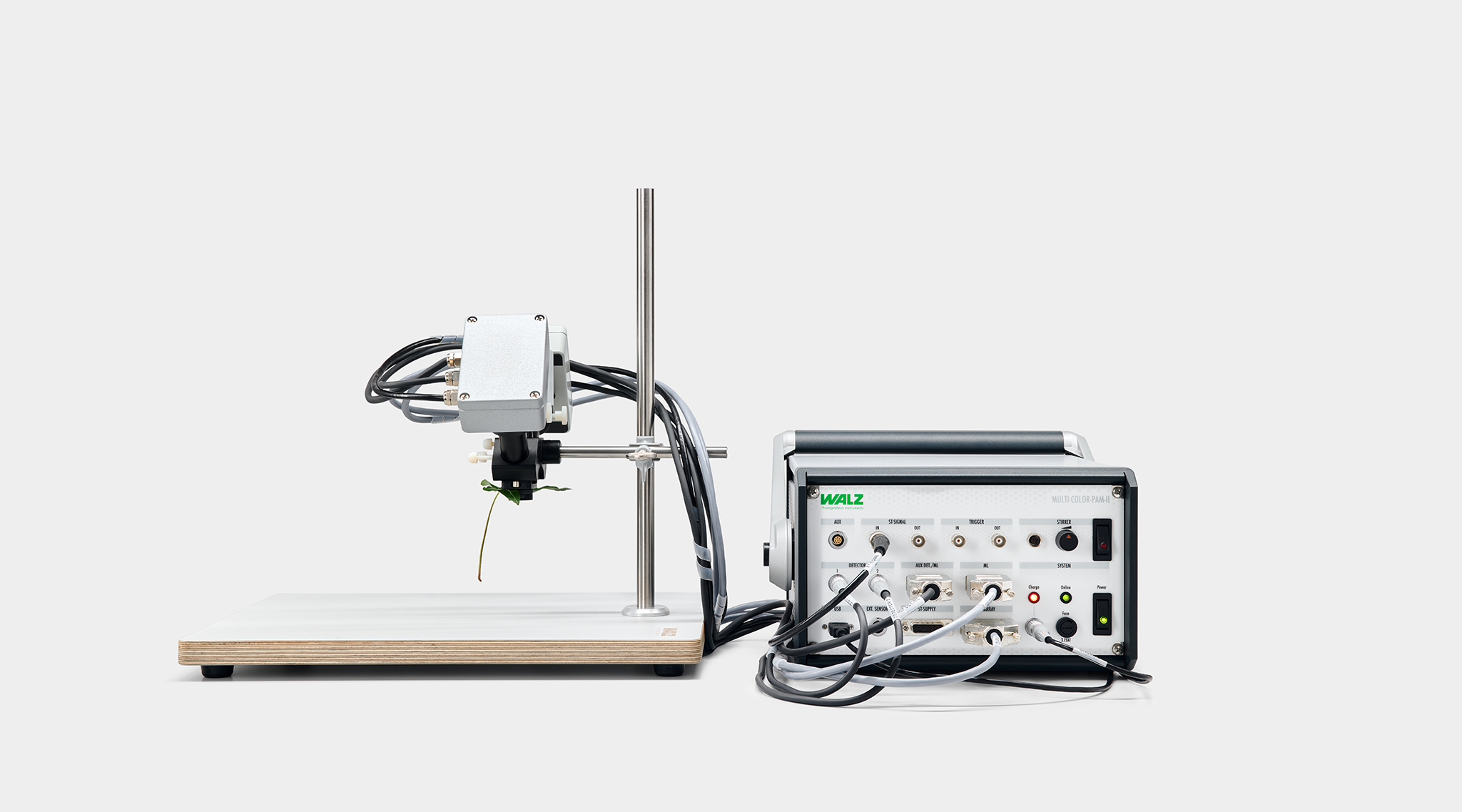

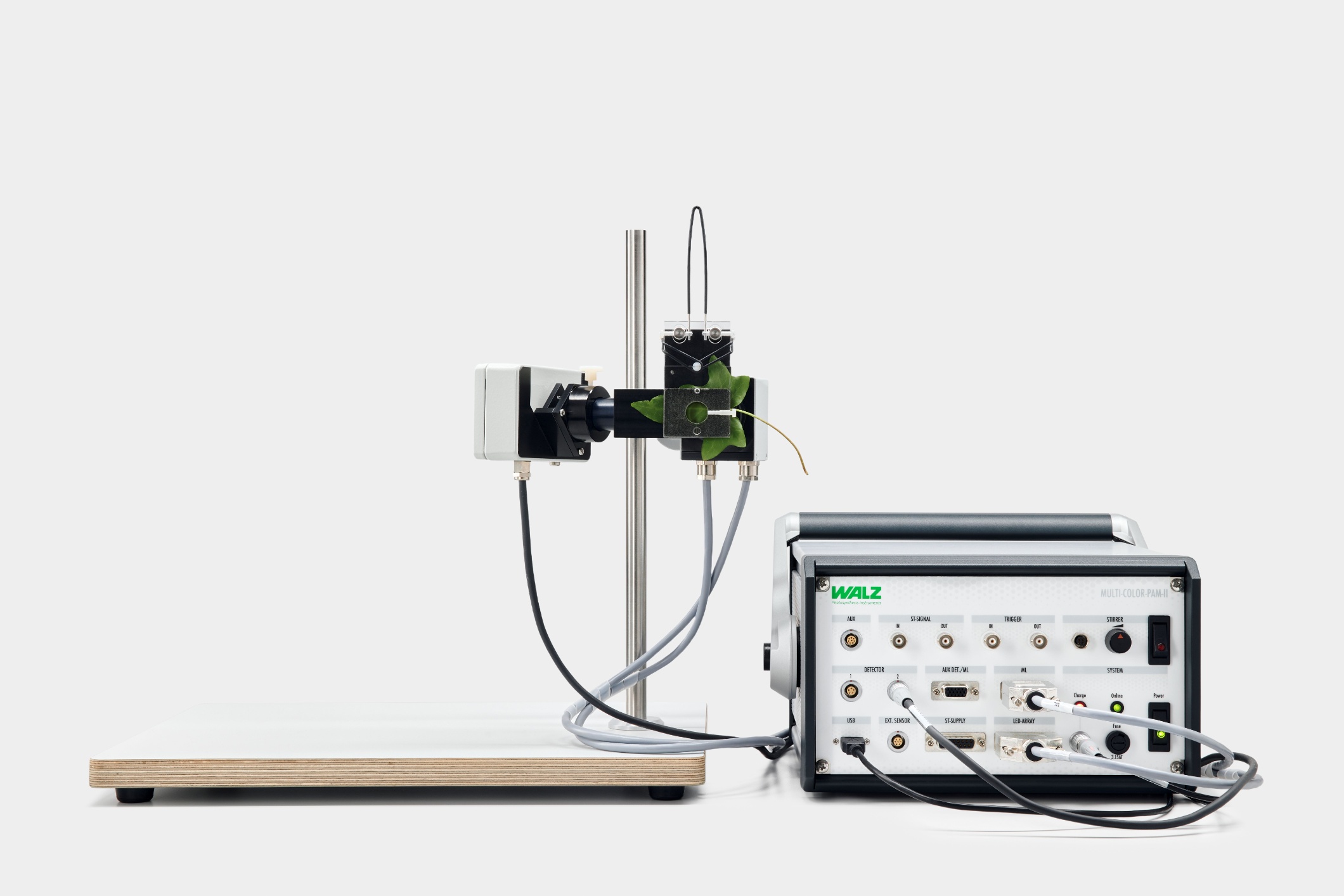

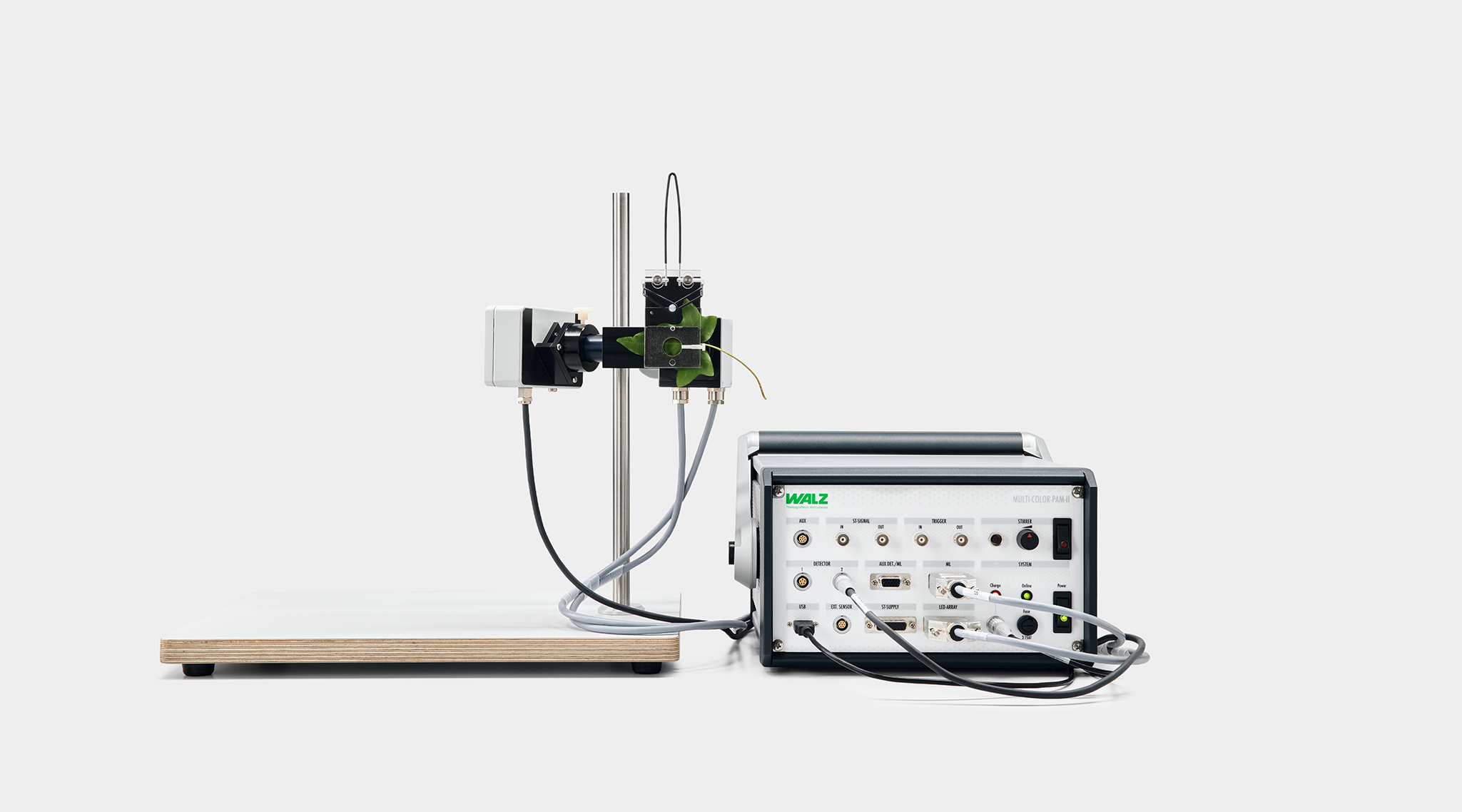

For leaf fluorescence measurements with the Multi-Color Emitter a new leaf clip (MCP-II-BK) is available. The Multi-Color Emitter is placed in the center and the two detectors are placed under a 45° angle relative to the emitter as shown below. The leaf is kept in place with magnets located in the clip and the lid that is placed on the other side of the leaf. The old MCP-BK leaf clip is also compatible with the MULTI-COLOR-PAM-II.
